HYMAC High-Efficiency Concrete Mixing Pump: Achieving Maximum Productivity

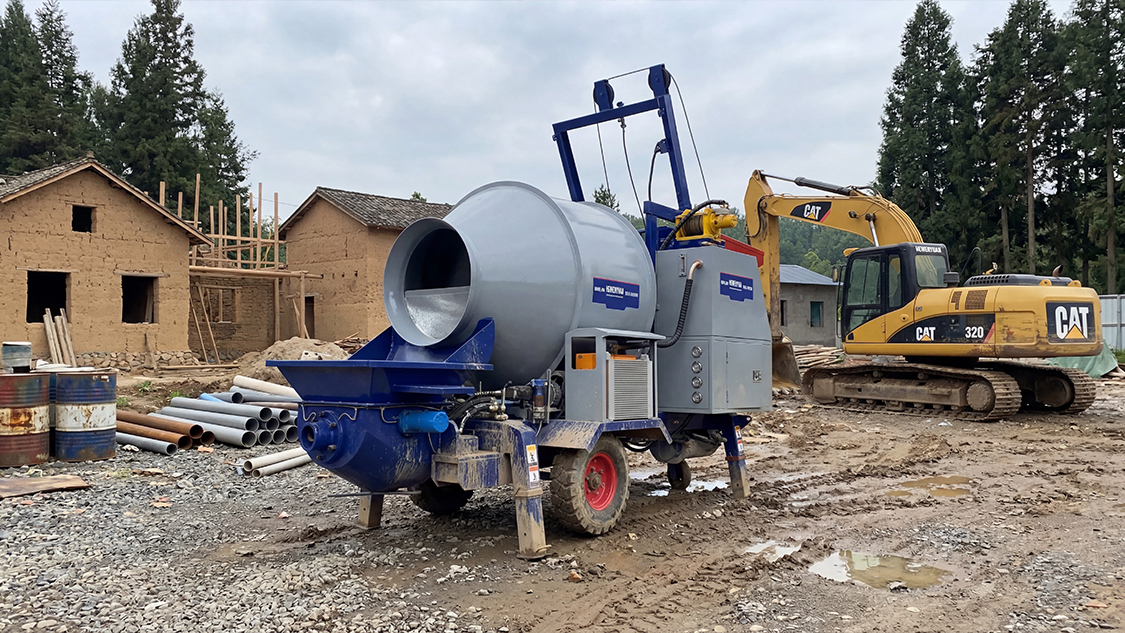

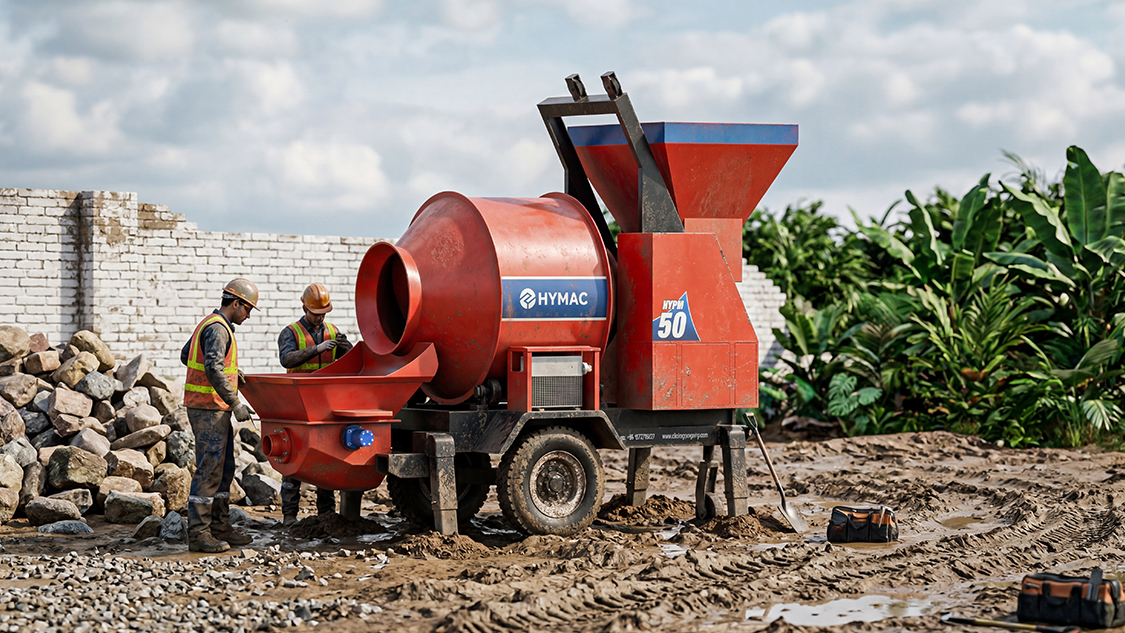

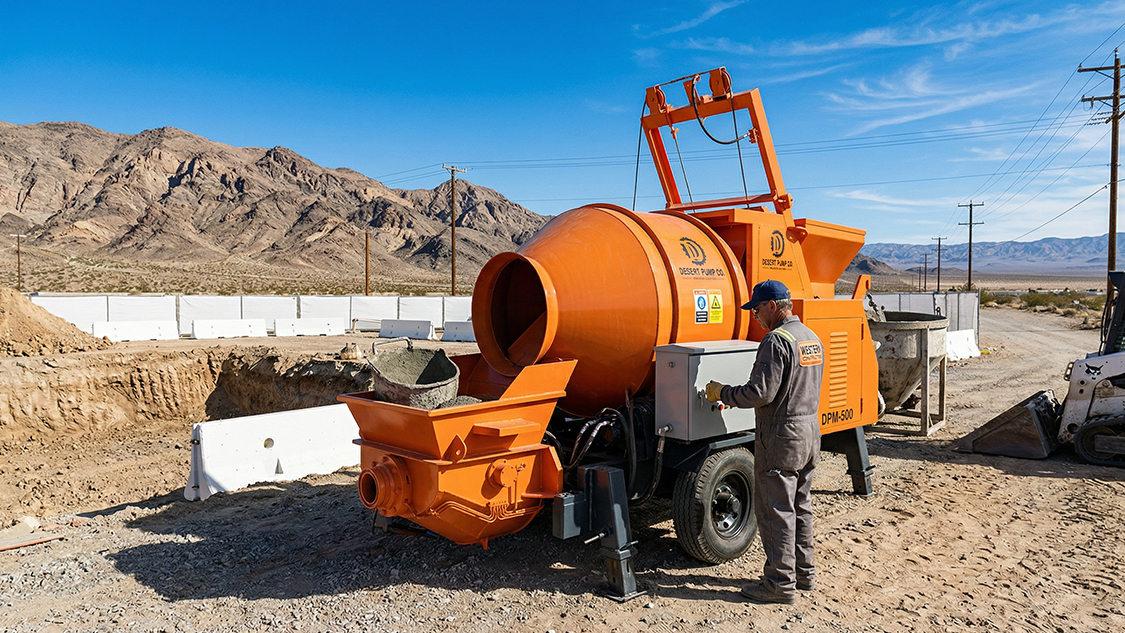

A concrete mixer pump is a machine that integrates the functions of a concrete mixer and a concrete pump into a single unit, enabling it to mix concrete directly at the construction site and then pump it to the required location. This innovative combination of mixing and pumping capabilities streamlines the concrete production process—particularly in situations where transportation is difficult or the project scale is relatively small. A loader can easily feed sand, gravel, cement, and other raw materials into the hopper. Compared to traditional standalone concrete mixers and pumps, this integrated unit allows for easier and faster task completion, proving to be both more economical and practical. It represents a newly improved and advanced piece of equipment.
The mixer pump discharges the freshly mixed concrete directly into the hopper of the integrated pump. Our high-performance hydraulic pumping system then precisely conveys the concrete to the designated location. By utilizing HYMAC concrete mixer pump equipment, you can save time, labor, and costs at your construction site.
Selecting a reputable manufacturer for your concrete mixer pump is crucial to safeguarding your investment. Our proven systems combine exceptional reliability with industry-leading performance, ensuring the smooth and successful execution of your project.
The precision components of the concrete mixing pump ensure efficient operation.
Our concrete mixer pumps feature advanced components to ensure high quality. These machines boast unparalleled reliability, efficiency, and durability. Here, you can gain an in-depth understanding of these advanced systems.
Concrete Mixer Pump Specifications
Diesel Concrete Mixer Pump
Key Parameters
Maximum Concrete Output (L/h)
Maximum Concrete Pumping Pressure (H/L)
unit
m³/h
MPa
HYPM-30
20
28
HYPM-40
25
28
HYPM-50
30
28
Distribution Valve Types
Hydraulic cylinder
Aggregate Diameter
unit
mm
mm
S-Valve
90*850 mm
≤30
S-Valve
100*1100 mm
≤30
S-Valve
110*1100 mm
≤40
Diesel Engine Model
Diesel Engine Engineering Power
Electrical control system
KW
mm
4108 turbocharged
37
Schneider Electric / Delixi
4108 turbocharged
45
Schneider Electric / Delixi
6105 turbocharged
121
Schneider Electric / Delixi
Theoretical conveying distance (fine stones)
Theoretical conveying distance (fine stones)
Theoretical conveying distance (large particles)
m
m
m
90 m
180
30
130
250
50
160
300
60
Theoretical conveying distance (large particles)
Overall dimensions
Total weight
m
mm
kg
150
4200*2200*2450
3500
150
4800*2250*2500
4000
200
4800*2250*2500
4500
5 Reasons to Choose HYMAC Concrete Mixer Pump Manufacturer
When investing in a concrete mixer with a pump, durability, efficiency, and long-term reliability are paramount. At HYMAC, we go to great lengths to ensure our equipment delivers optimal performance with minimal downtime.
High-quality hydraulic system protection
Our hydraulic oil tanks use specially treated steel tubing to prevent corrosion and extend system life. For tank cleaning, hoses and valve blocks are thoroughly cleaned to remove contaminants, ensuring clean hydraulic oil circulation and reducing wear.
Ultra-clean diesel and hydraulic systems
The diesel fuel cleaning port undergoes heat treatment and is purged with compressed air. This removes all impurities, ensuring cleaner oil. By maintaining the purity of the hydraulic oil, we can minimize system failures and extend its service life.
Rigorous pre-delivery testing
Before shipment, we conduct high, medium, and low pressure tests to ensure stable machine operation and no leaks. We will also verify its performance under actual working conditions. Therefore, you will receive a fully optimized mixing and pumping unit.
Enhance power stability
Our mobile concrete mixing pump features voltage and current stabilization. This prevents power fluctuations and ensures uninterrupted operation.
Heavy-duty pumping pipelines for maximum efficiency
The concrete mixer pump's pipe diameter is 125 mm, and the wall thickness is 4.5 mm (5 mm at elbows). This ensures excellent strength and wear resistance.
Furthermore, we equip it with C-type quick-release pipe clamps for rapid, tool-free installation and removal. This significantly saves you time and increases productivity on the construction site.

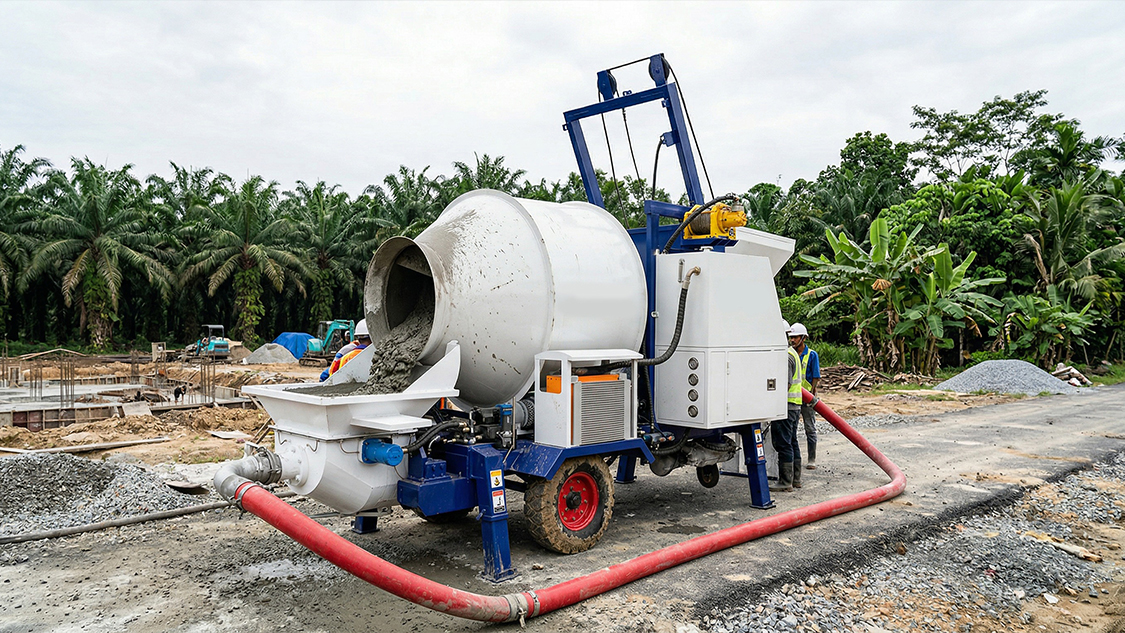

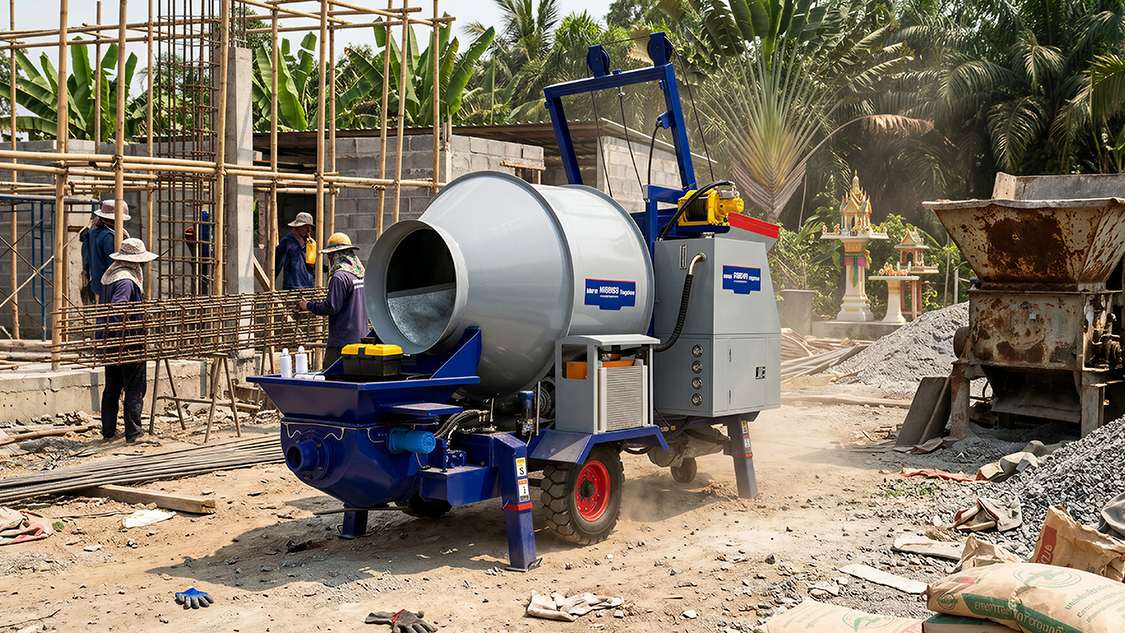

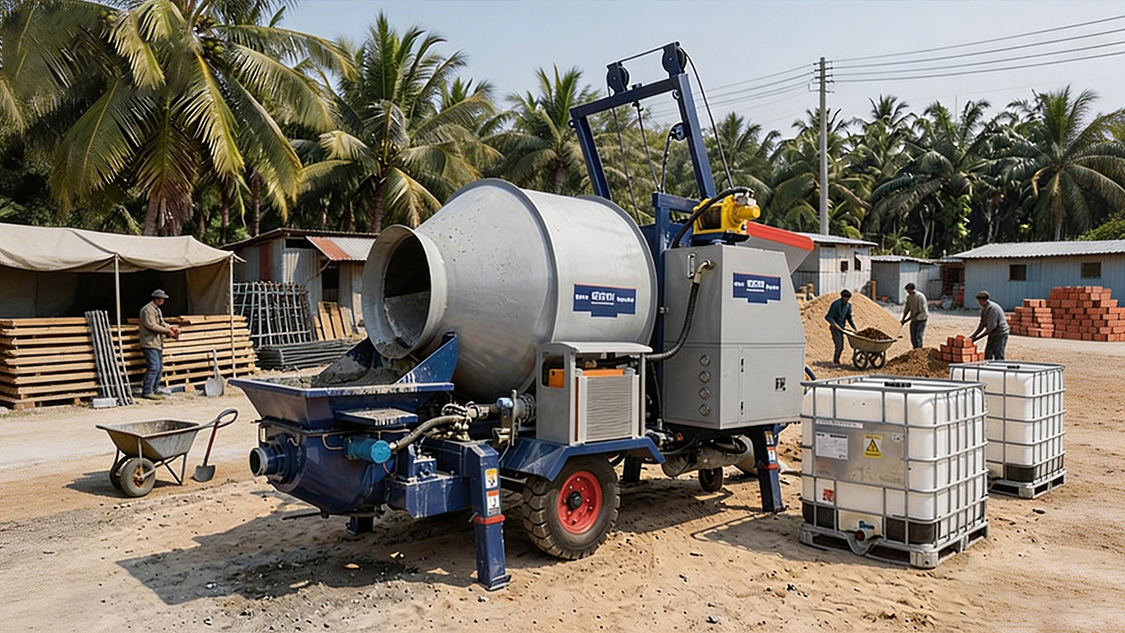

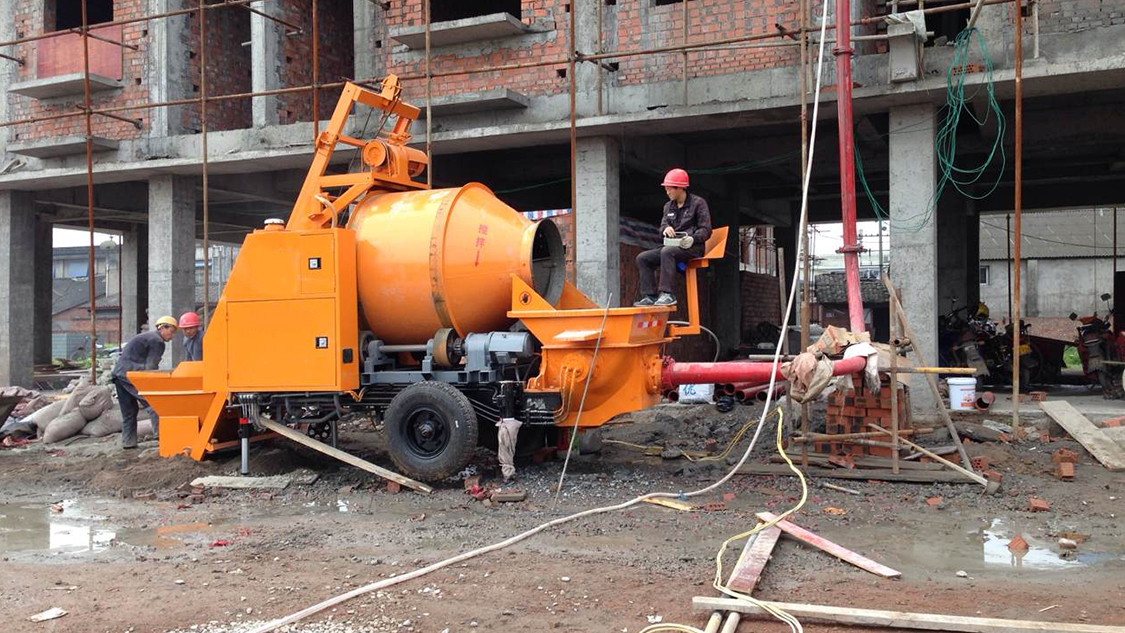

Engineering Cases
Choosing HYMAC gives you access to cleaner hydraulic systems, reducing downtime; rigorous pre-testing, ensuring reliable performance; stable power for continuous operation; robust piping; and quick-clamping for faster workflows. For durable, high-efficiency concrete pumps, you can rely on HYMAC's superior engineering.
