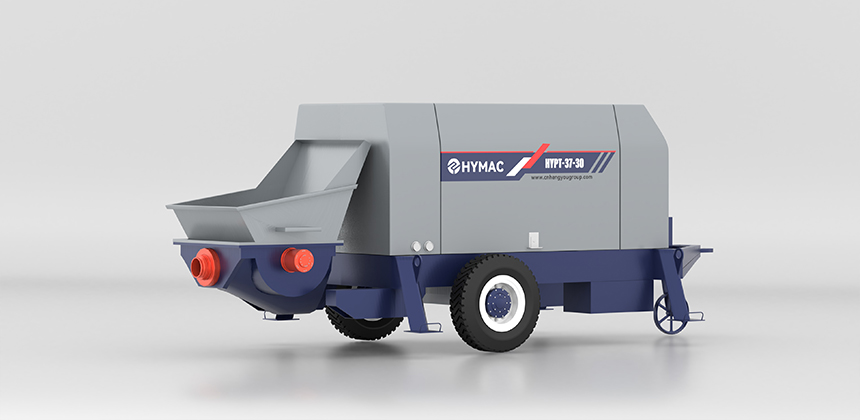

Concrete trailer pumps are classified according to their power source.
Diesel power
Maximum theoretical concrete production (length/height): 30 cubic meters/hour - 90 cubic meters/hour
Diesel power for engineering applications: 82kw-176kw
Maximum theoretical horizontal conveying distance: 500-1200 meters
Maximum theoretical vertical conveying distance: 120m-260m
Total weight: 4500kg-6900kg
Applications: This diesel concrete pump trailer is ideal for areas with insufficient power.
Electric model
Maximum theoretical concrete production (length/height): 30 cubic meters/hour - 90 cubic meters/hour
Diesel power for engineering applications: 45kw-110kw
Maximum theoretical horizontal conveying distance: 500m-1000m
Maximum theoretical vertical conveying distance: 120m-200m
Total weight: 3200kg-6300kg
Applications: This electric concrete pump trailer is suitable for urban and residential projects with a power supply.
Successful Client Case Studies
HYMAC empowers numerous clients to successfully complete a wide range of construction projects through its concrete pumping solutions. This section showcases some of our successful client case studies.

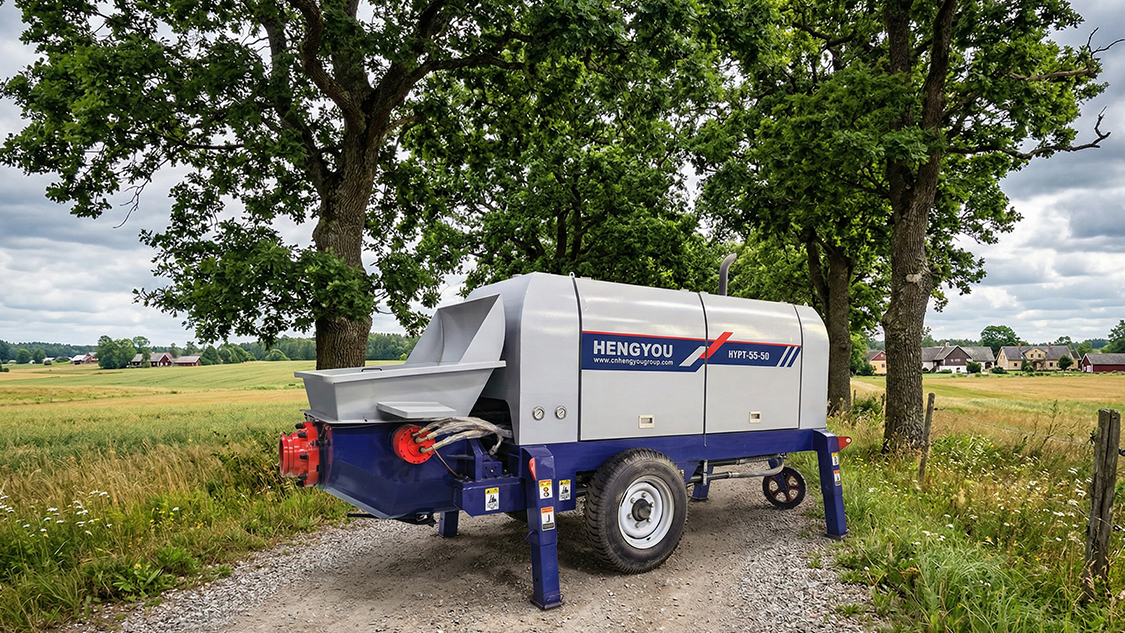

Philippines Road Construction
Pump Model: HYPT-55-50
Power Source: Diesel Engine
Pumping Capacity: 40 m³/h
Location: Philippines
Project Name: Road Construction
Client Feedback: The concrete pump was transported inside a shipping container. It was secured very firmly with steel cables, showing absolutely no signs of bumps or damage. It arrived on schedule and worked seamlessly in conjunction with HYMAC's self-loading concrete mixer.
Trailer-Mounted Concrete Pump Specifications
Presented here are additional specifications for our trailer-mounted concrete pumps. Please refer to the table below to select the model best suited for your project.
Concrete Trailer Pump
property
Complete Machine
Complete Machine
Key Parameters
Maximum Concrete Output (L/h)
Maximum Concrete Pumping Pressure (H/L)
unit
m³/h
MPa
HYPT-45-40
40
10
HYPT-55-50
40-45
20
HYPT-75-60
80
25
property
Complete Machine
Distribution Valve Types
Concrete Cylinder Diameter × Stroke
Aggregate Diameter
unit
mm
mm
S-Valve
Φ100*1000
≤30
S-Valve
Φ110*1100
≤40
S-Valve
Φ125*1450
≤50
Power System
Diesel Engine Model
Diesel Engine Engineering Power
Main fuel pump
kw
Weichai
75
112 Plunger pump
Weichai
75/121
140 Plunger pump
Weichai
132
Dual 112 Plunger pump
Working Parameters
Electrical control system
Theoretical conveying height (fine stone)
Theoretical conveying distance (fine stone)
unit
Schneider/Delixi
100-110 m
250 m
Schneider/Delixi
150-180 m
300-350 m
Schneider/Delixi
Theoretical conveying height (Large particles)
Theoretical conveying distance (Large particles)
Machine size
mm
50 m
150 m
3600*1700*1900
70 m
250 m
4200*1800*1950
200 m
400 m
5800*1800*1900
Achieve High-Efficiency Operation Using the Six Major Systems of a Trailer-Mounted Concrete Pump
Power System
Key Feature: Standard Weichai engine (Cummins/Dongfeng options available).
Advantages and Benefits: The powerful engine delivers robust performance and exceptional reliability, backed by a global service network. This minimizes downtime, ensuring continuous operation and safeguarding your project schedule.
Hydraulic System
Features: Hardened alloy steel wear plates (with a service life exceeding 30,000 cubic meters) and Parker seals.
Advantages & Benefits: High-precision components capable of withstanding extreme pressure and abrasion while simultaneously preventing leaks. This maximizes pumping efficiency, reduces maintenance costs, and shortens project cycles.
Chassis System
Features: Multi-traction design (towable by trucks, loaders, or forklifts) with self-recovery capabilities.
Advantages & Benefits: Offers exceptional mobility and flexibility, saves on transport time, and enables rapid extraction from muddy terrain. You can avoid costly towing rental fees and prevent project delays.
Control System
Features: Schneider Electric components + Omron PLC; Dual Control Panels / Remote Control.
Advantages & Benefits: Simplified, industrial-grade electronics ensure stable operation. Remote control enables precise and safe adjustments from a distance, thereby eliminating manual errors.
Lubrication System
Feature: Pre-filled, automatic central lubrication.
Advantages & Benefits: Continuously delivers lubricant to critical joints, thereby reducing wear. This ensures smooth operation while simultaneously lowering manual maintenance requirements and costs.
Control System
Features: Schneider Electric components + Omron PLC; Dual Control Panels / Remote Control.
Advantages & Benefits: Simplified, industrial-grade electronics ensure stable operation. Remote control enables precise and safe adjustments from a distance, thereby eliminating manual errors.
