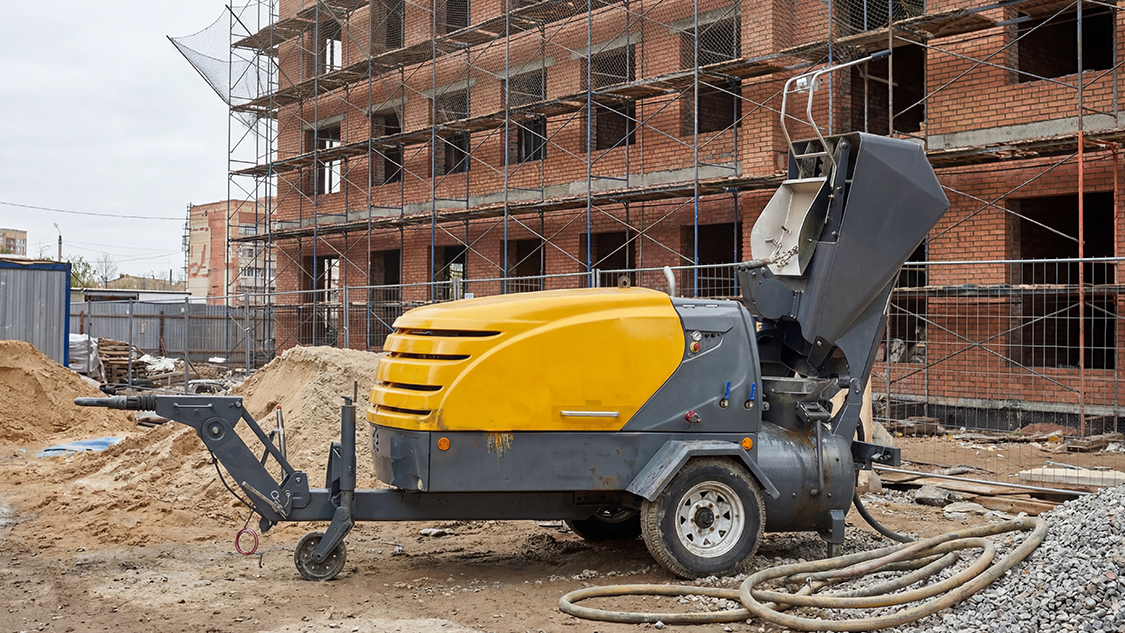

Our HYM 740 / HYM 760 is available in three versions:
Model：HYM 740 D / HYM 760 D
Power Type: Diesel Version
Mixer drum : 260L
Useful capacity: 200L
Delivery rate: 4.0m³/h
Horizontally Delivery range : 200m
Vertically Delivery range: 150 m
Filling height: 820mm
Maximum grain siz: 16 mm
Engine power : 45kw
Tank capacity: 62 L
Oil consumption : 7.6L /h
Weight (fully fuelled ): 1535 kg
Dimension: 4407*1495*1520 mm
Model：HYM 740 DB / HYM 760 DB
Power Type: Diesel Version
Mixer drum : 260L
Useful capacity: 200L
Delivery rate: 4.8m³/h
Horizontally Delivery range : 200m
Vertically Delivery range: 150 m
Filling height: 400mm
Maximum grain siz: 16 mm
Engine power : 45kw
Tank capacity: 62 L
Oil consumption : 9.2L /h
Weight (fully fuelled ): 1670 kg
Dimension: 4700*1495*2431 mm
Model：HYM 740 DBS / HYM 760 DBS
Power Type: Diesel Version
Mixer drum : 260L
Useful capacity: 200L
Delivery rate: 5.0m³/h
Horizontally Delivery range : 200m
Vertically Delivery range: 150 m
Filling height: 400mm
Maximum grain siz: 16 mm
Engine power : 45kw
Tank capacity: 62 L
Oil consumption : 9.7L /h
Weight (fully fuelled ): 1740 kg
Dimension: 4700*1495*2431 mm

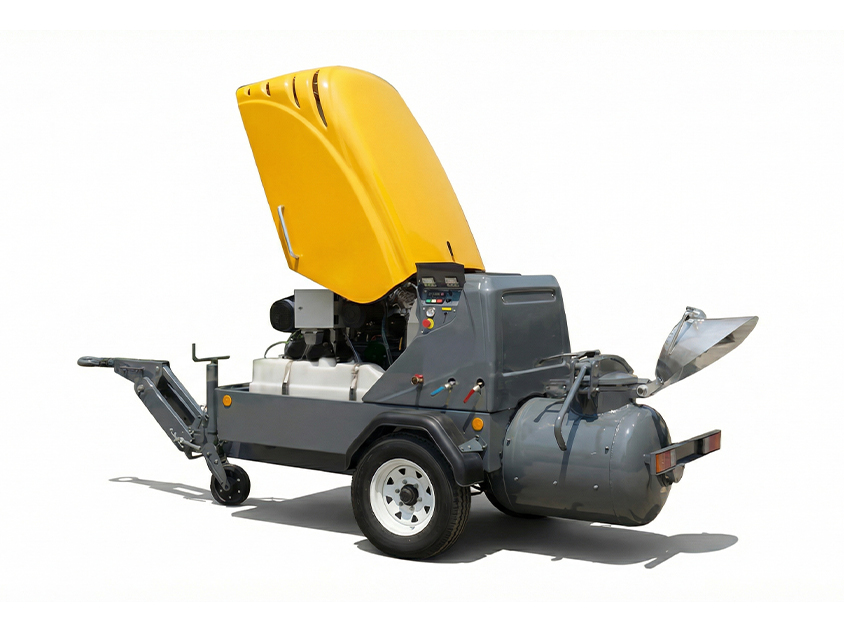

HYM 740/760 D
Diesel version (basic version)
Manual feeding
HYM 740/760 DB
Diesel version (basic version)
feeder
Hydraulic feeders can improve work efficiency

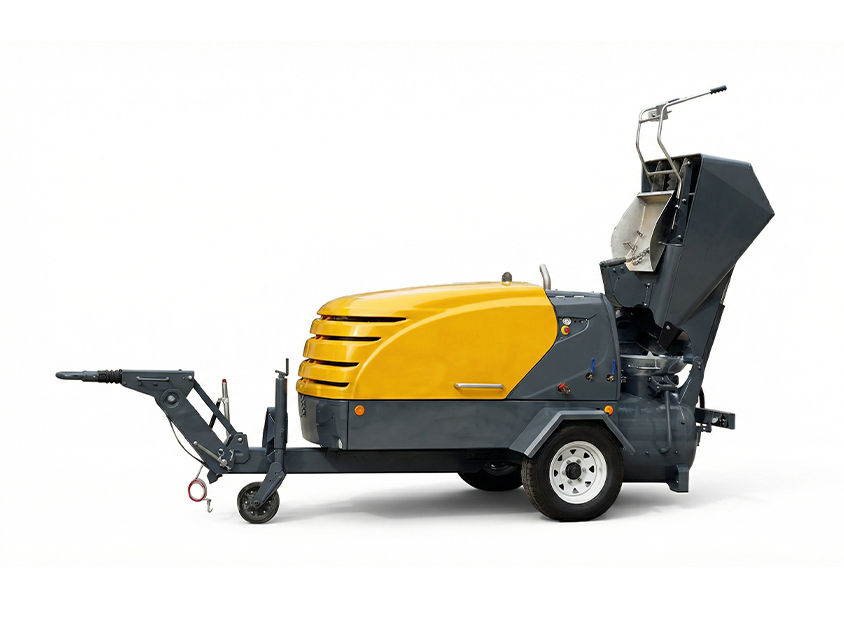

HYM 740/760 DBS
Diesel version (basic version)
feeder
scraper
Hydraulic feeders can improve work efficiency
Scrapers facilitate filling.
Successful Client Case Studies
Leveraging its large-scale leveling solutions, HYMAC has empowered numerous clients to successfully complete a wide variety of construction projects. This section showcases a selection of our client success stories.

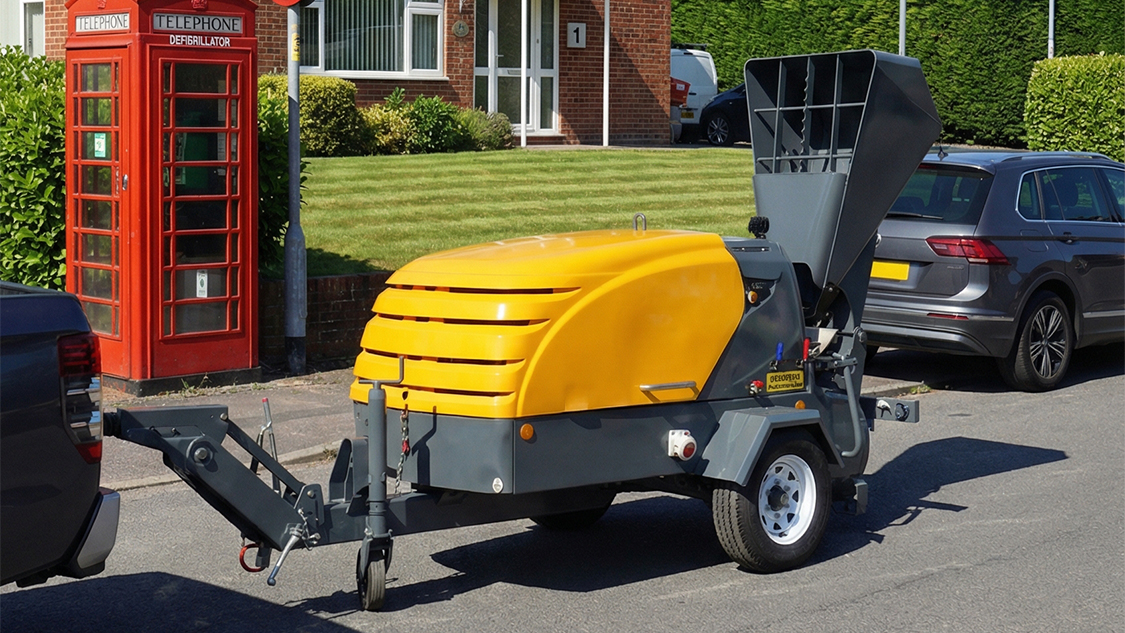

UK Floor Treatment
Pump Model: HYM 760 DB
Power Source: Diesel Engine
Location: U.K.
Project Name: Floor Treatment
Client Feedback: Purchasing this type of machinery locally is prohibitively expensive for us; consequently, we turned to HYMAC. Their machines are significantly more affordable while offering nearly identical performance—representing excellent value for money. We now plan to procure several units from the UK for resale.
Exceptional performance for large-scale leveling operations!
Four-cylinder engine delivering powerful performance
Hydraulic feeder enhances operational efficiency
Scraper facilitates convenient filling
Clear and user-friendly control panel
Chassis suitable for road travel, with a top speed of 80 km/h
Optimized maintenance and service features
Robust design ensures value retention and high resale value

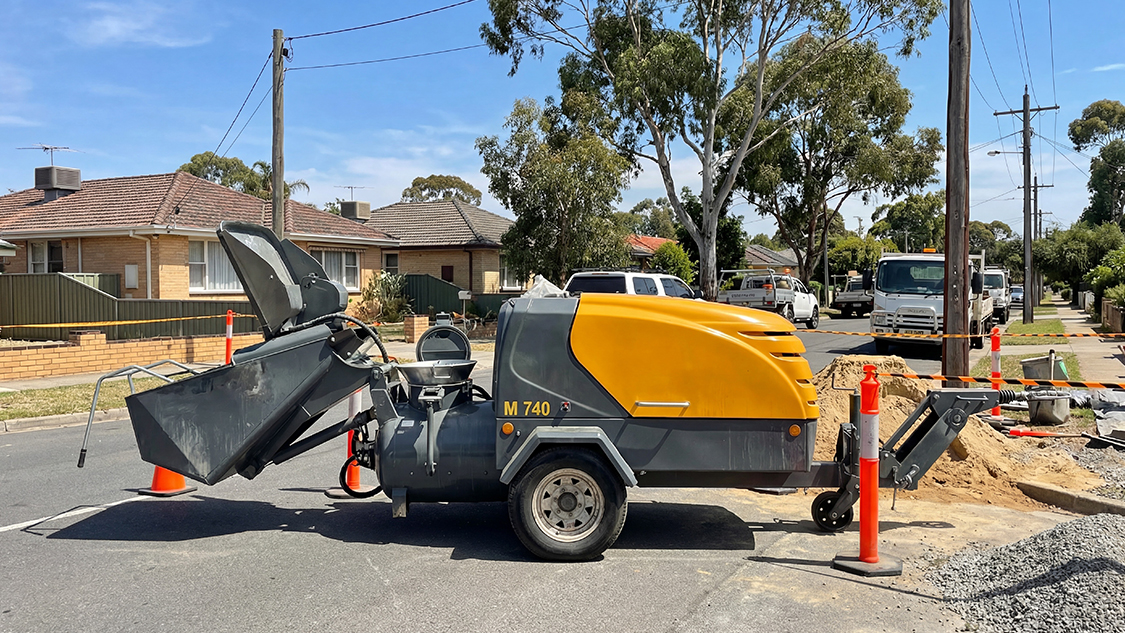

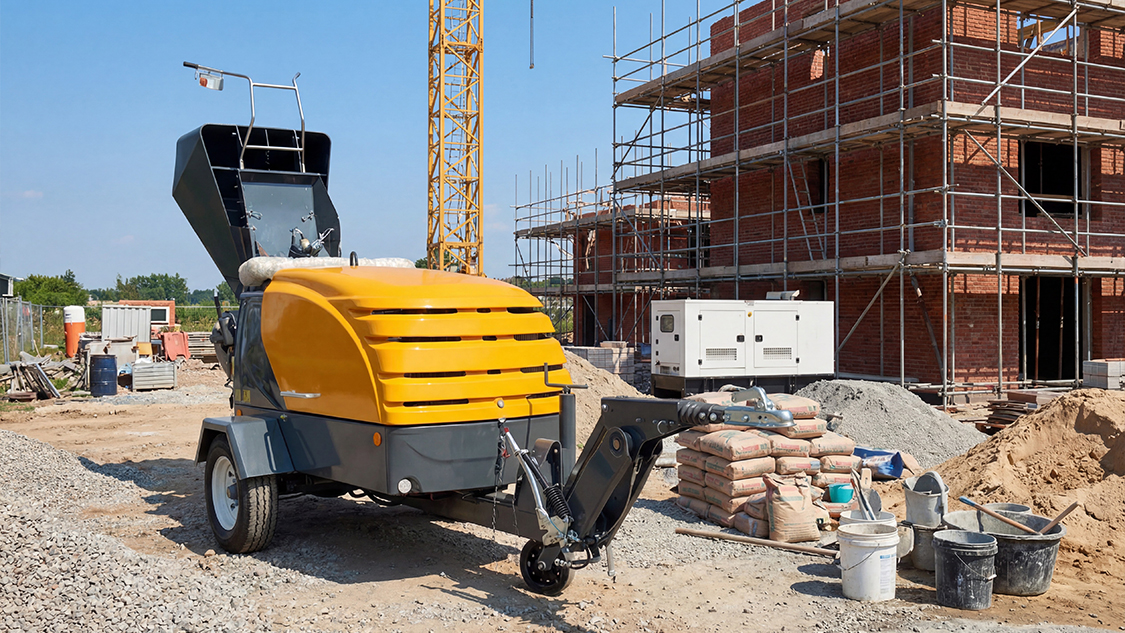

Rich and Diverse Application Scenarios
