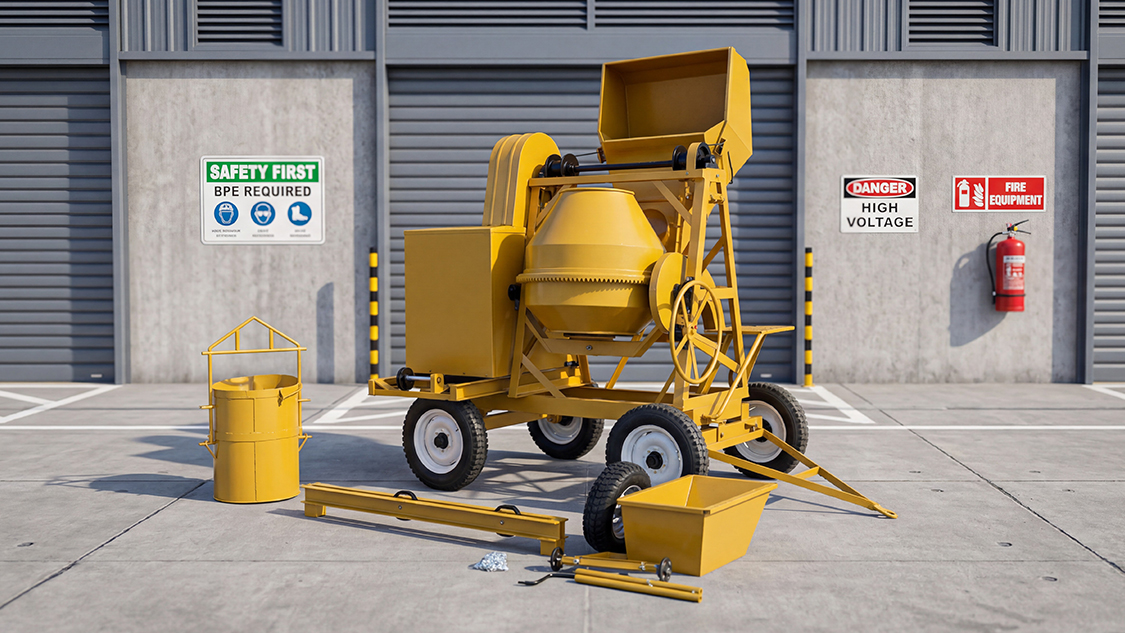

Components of a Self-Loading Concrete Mixer
You may freely choose the capacity of either manual or hopper-style mixers.

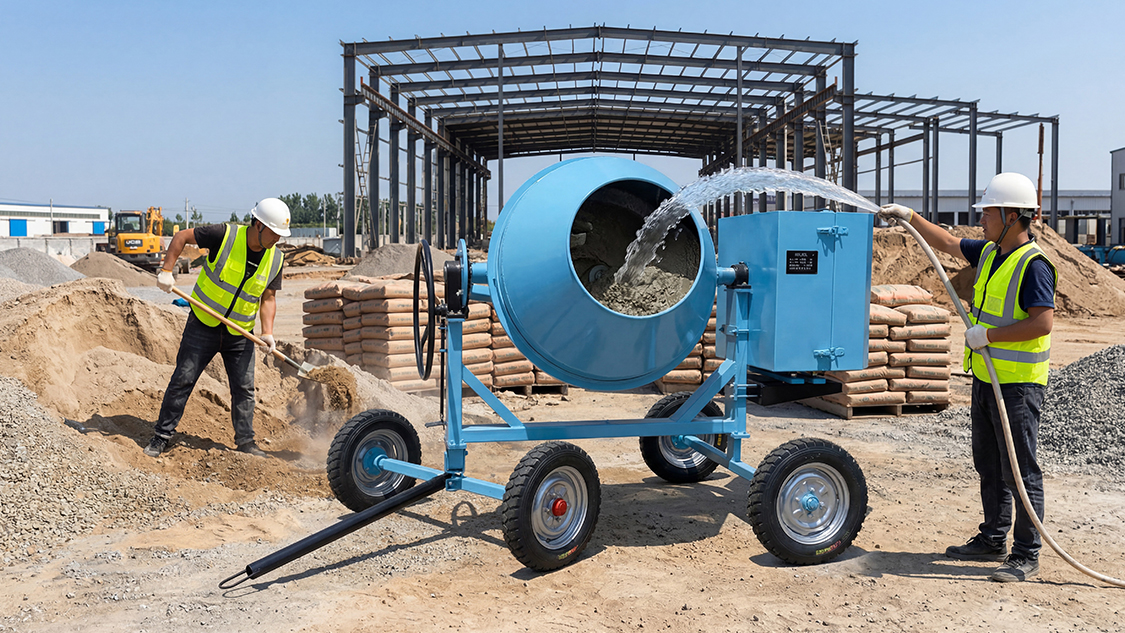

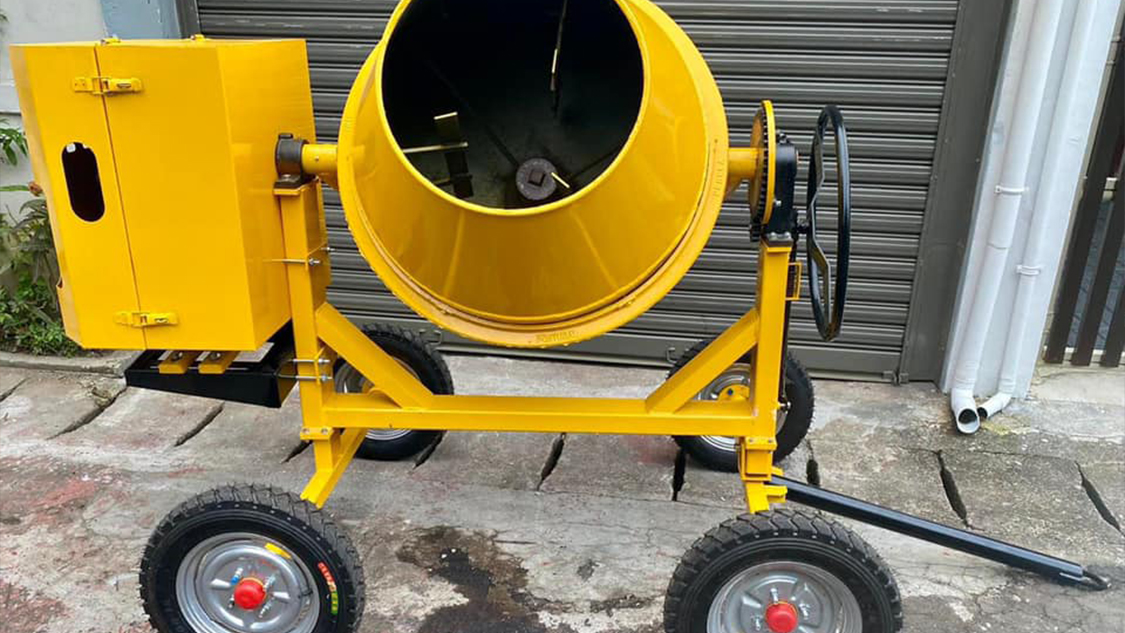

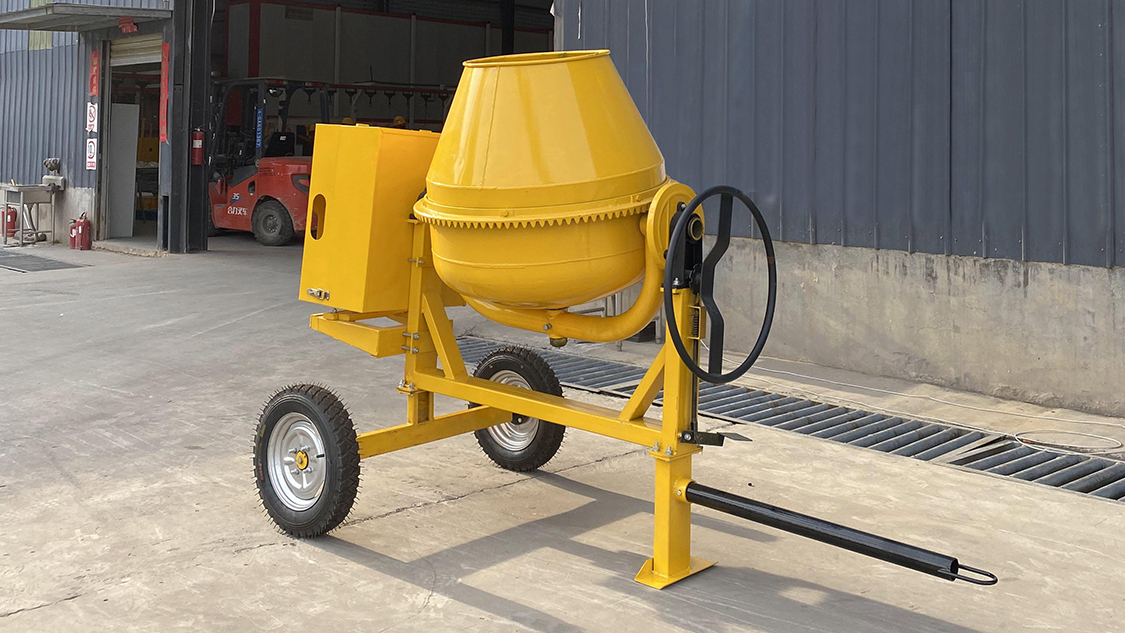

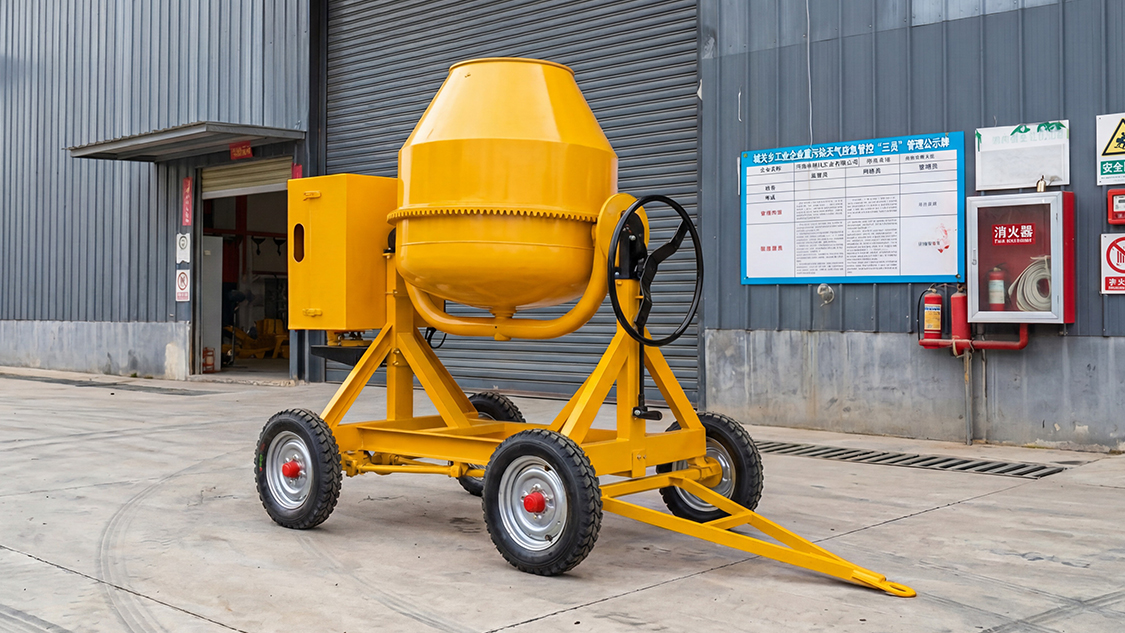

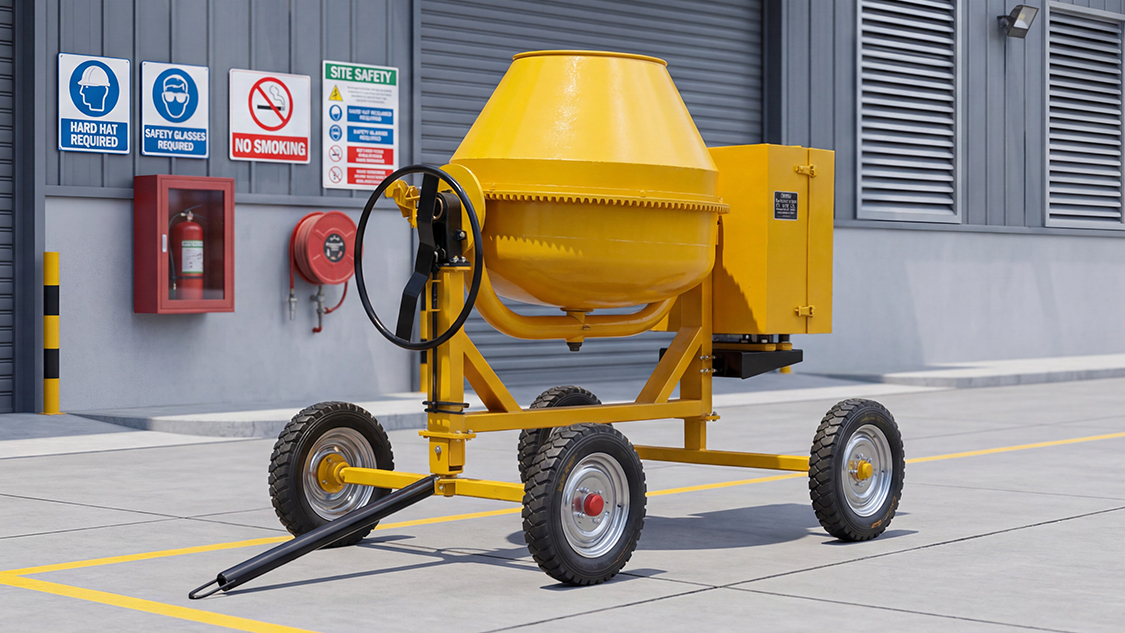

Manual Tilting Drum Concrete Mixers
Model: HY350L-2C, HY350L-4C
Drum Capacity: 350L
Mixing Capacity: 280L
Concrete Output: 4-5 m³/h
Bags of Cement Per Batch: 1 bag (50kg/bag)
Drum Rotation Speed: 25-30 RPM
Tyre Size and Number: (4.00-12)*2
Total Weight: 260 kg
Overall Size (L*W*H) : 1960*1100*1700 mm
Engine Options: Domestic 178F / Honda GX270 / 4kw Electric Motor
Manual Tilting Drum Concrete Mixers
Model : HY500L-2C, HY500L-4C
Drum Capacity : 500L
Mixing Capacity : 400L
Concrete Output : 6-8 m³/h
Bags of Cement Per Batch: 1.5 bag (50kg/bag)
Drum Rotation Speed: 25-30 RPM
Tyre Size and Number: (4.00-12)*4/(4.00-12)*2
Total Weight: 370 kg
Overall Size (L*W*H) : 2160*1200*1700 mm
Engine Options: Domestic 186F / Honda GX270 / 4kw Electric Motor
Manual Tilting Drum Concrete Mixers
Model : HY700L
Drum Capacity : 700L
Mixing Capacity : 500L
Concrete Output : 8-10 m³/h
Bags of Cement Per Batch : 2 bag (50kg/bag)
Drum Rotation Speed : 25-30 RPM
Tyre Size and Number : (5.00-12)*4
Total Weight : 580 kg
Overall Size (L*W*H) : 2200*1500*1850 mm
Engine Options : Domestic 186F / Honda GX390/ / 5.5kw Electric Motor
Hopper-Fed Tilting Drum Type Concrete Mixers
Model : HY510L
Drum Capacity : 510L
Mixing Capacity : 350L
Concrete Output : 12 m³/h
Lifting Height : 25m
Drum Rotation Speed : 2200 RPM
Tyre Size and Number : (6.50-16)*4
Total Weight : 1700 kg
Overall Size (L*W*H) : 2300*1350*2750 mm
Engine Options : ZS1100

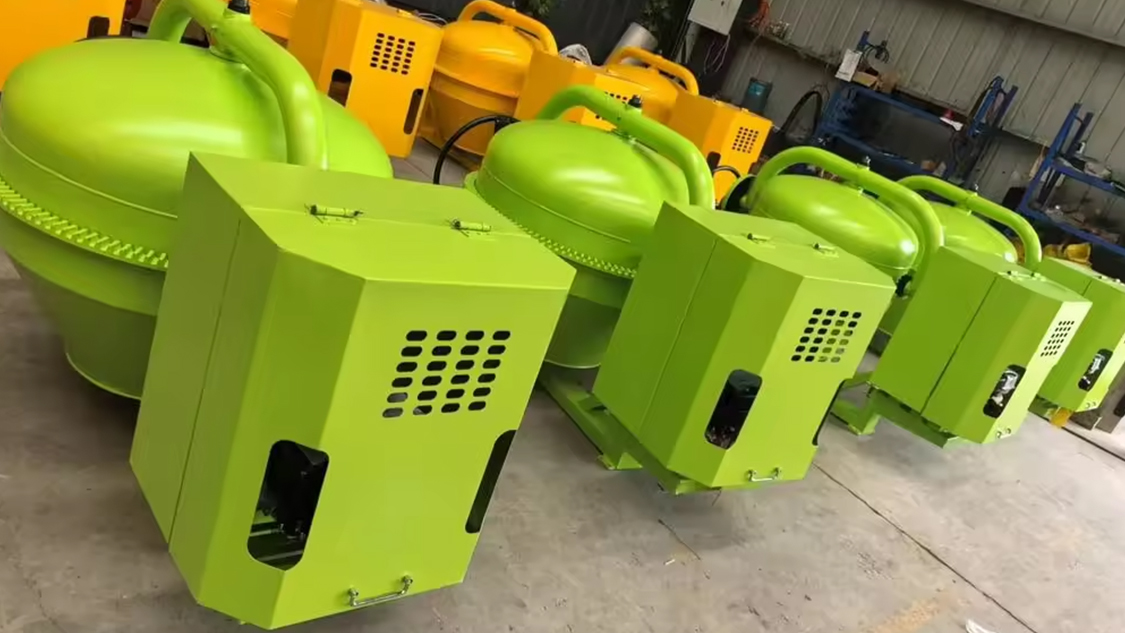

Components of a Mini Concrete Mixer

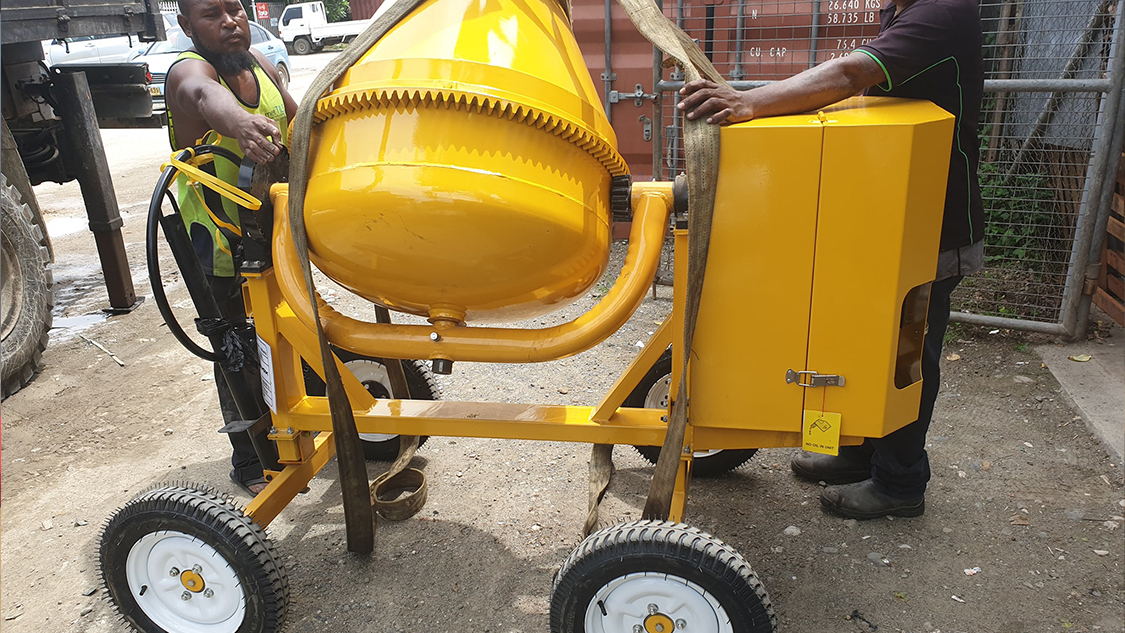

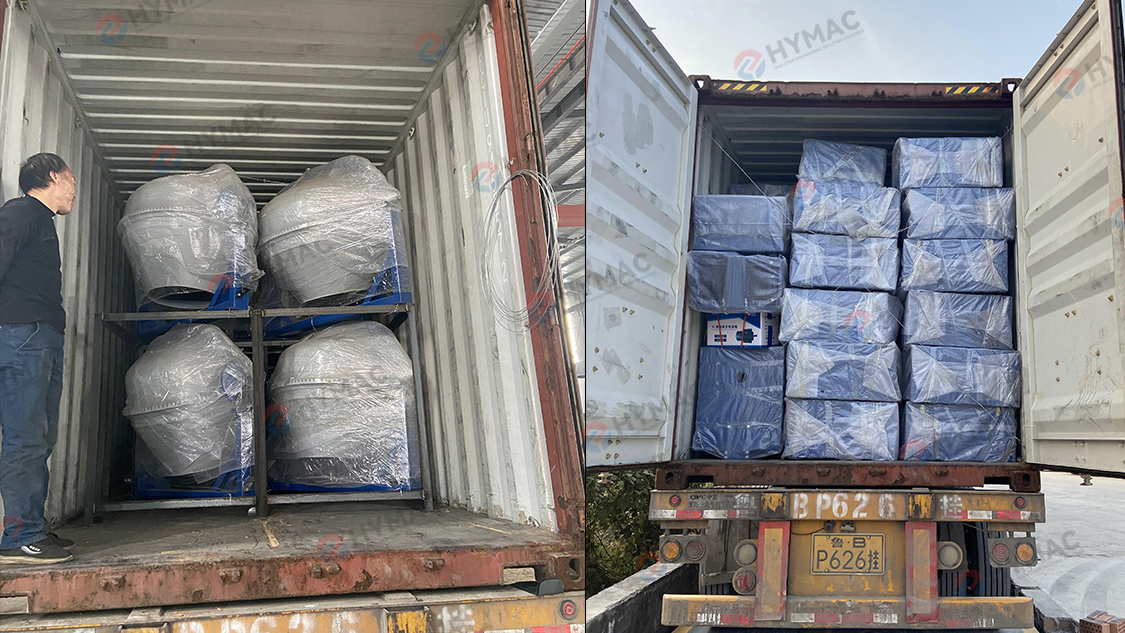

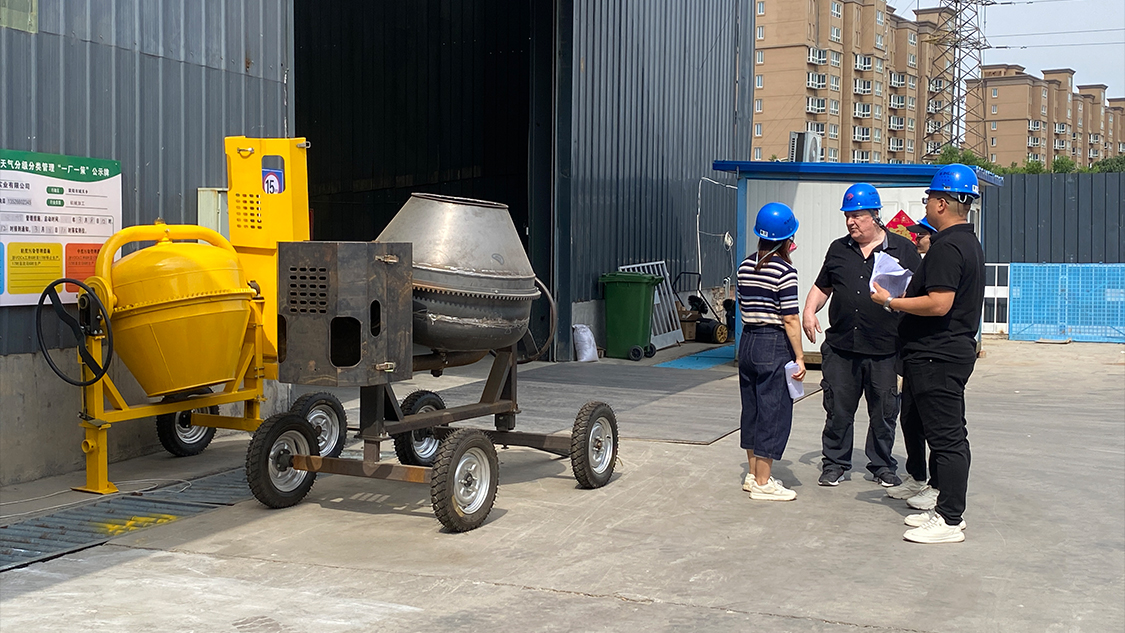

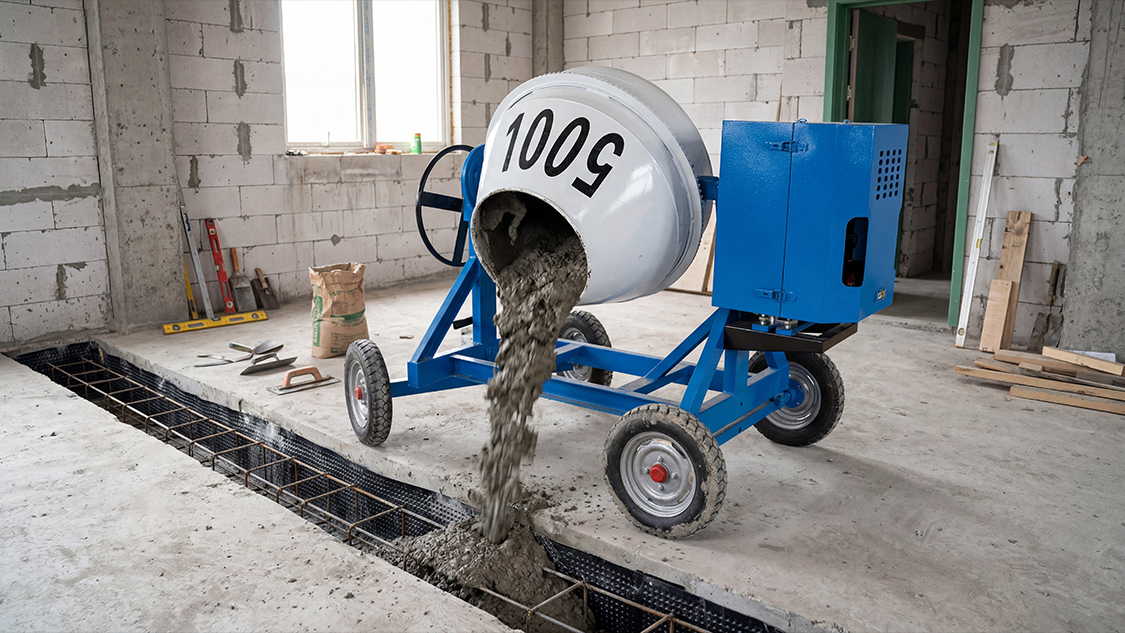

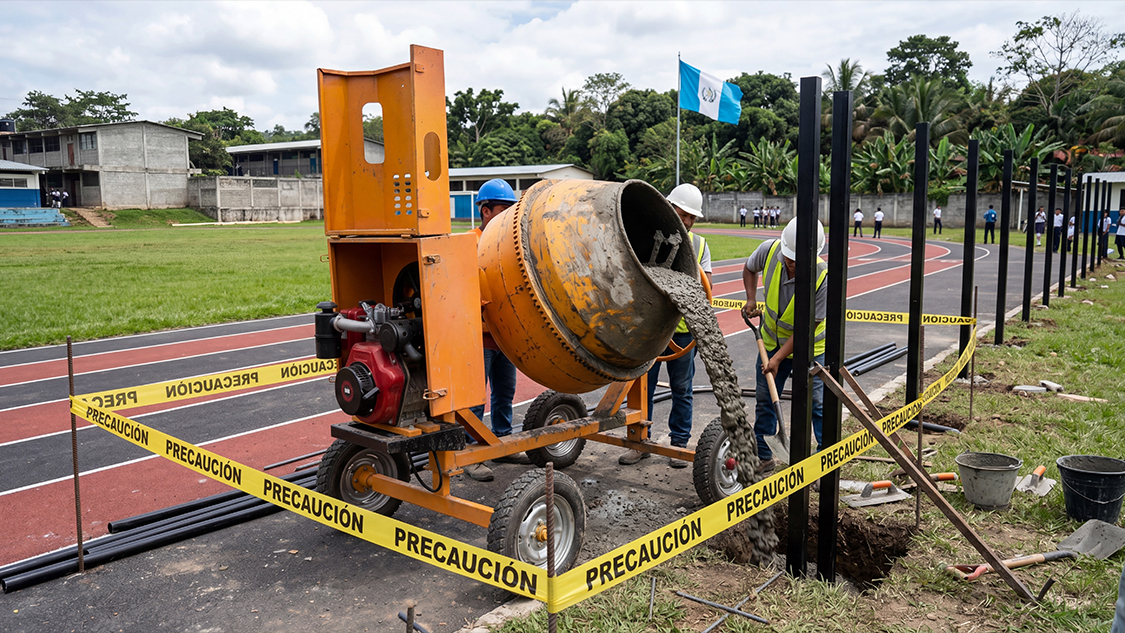

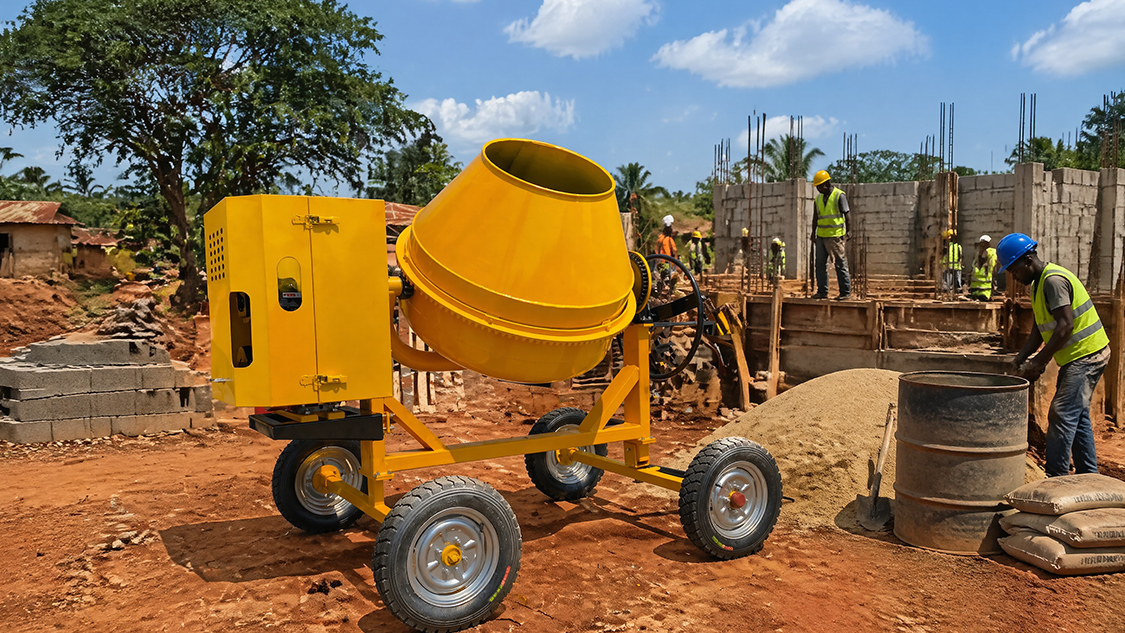

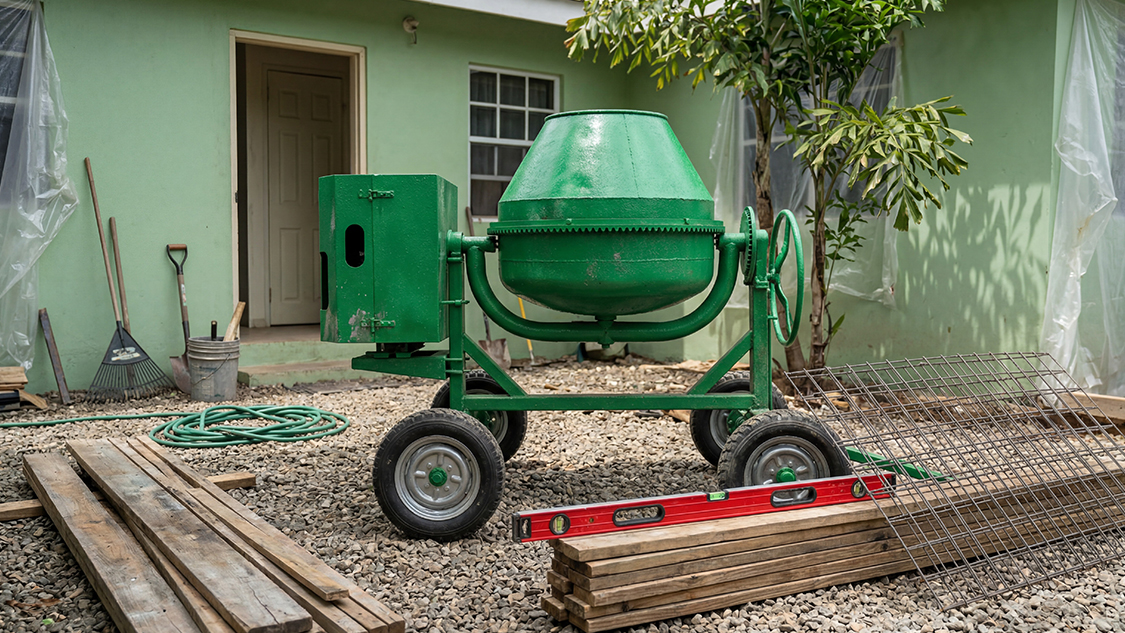

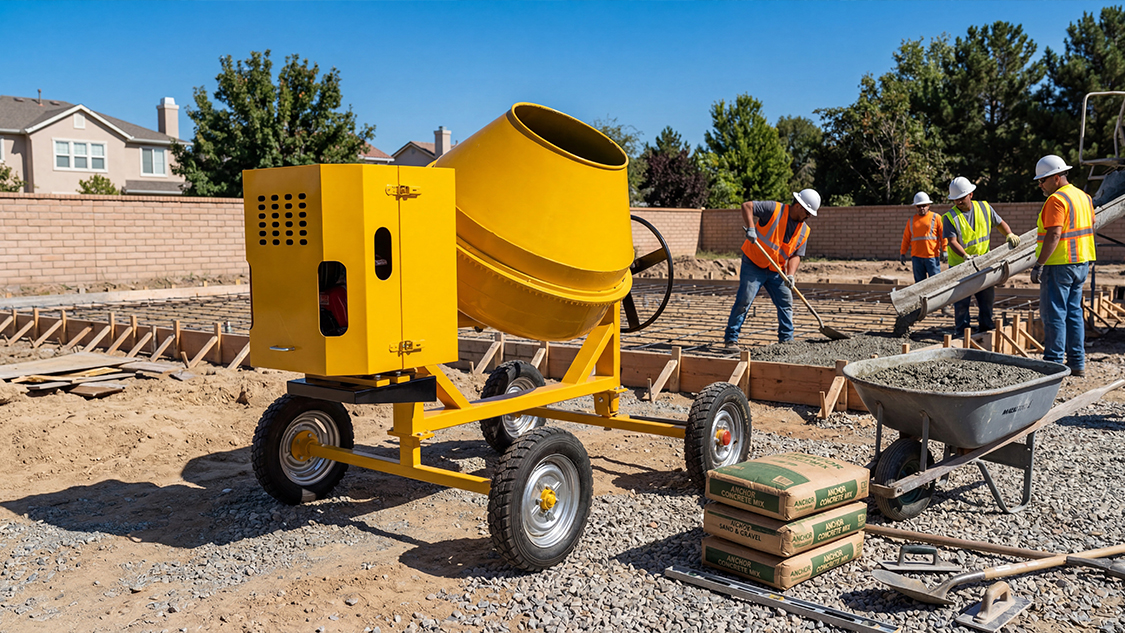

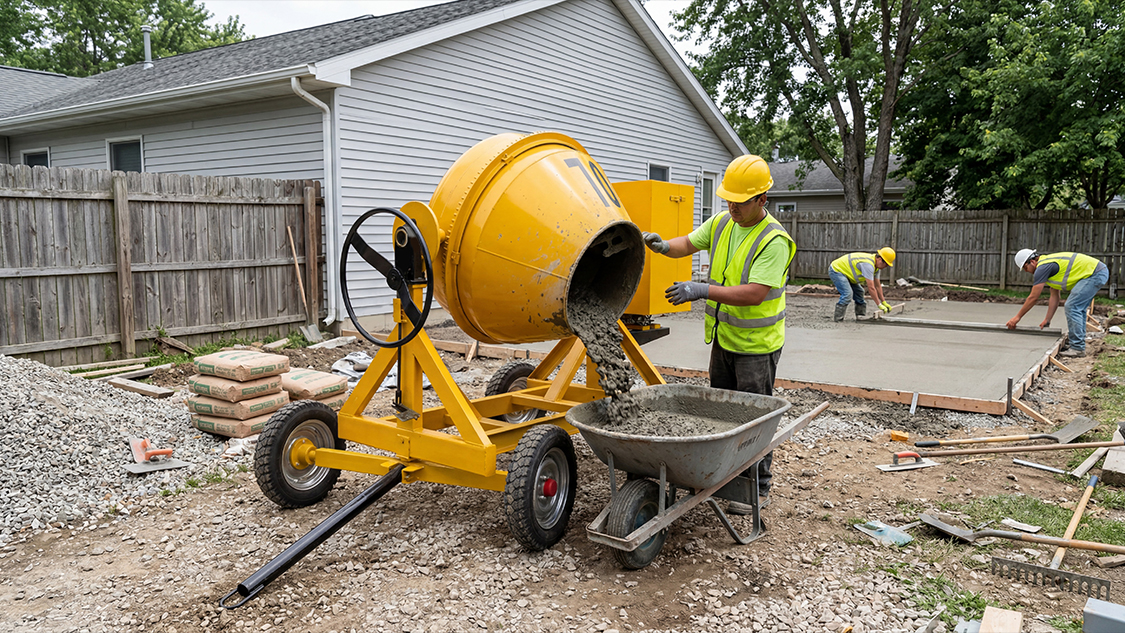

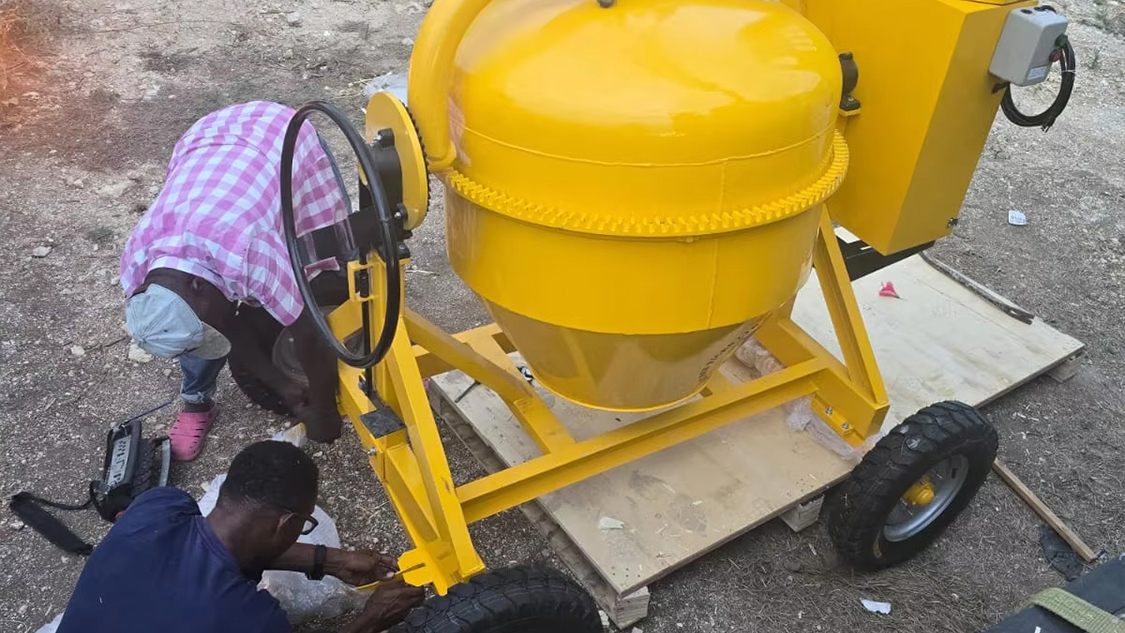

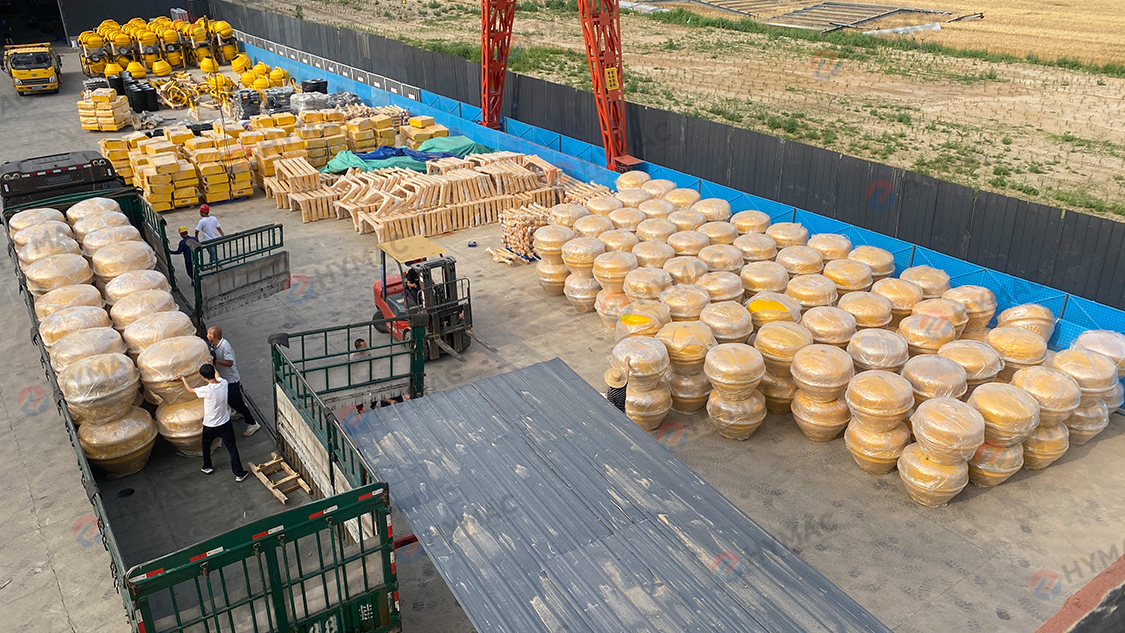

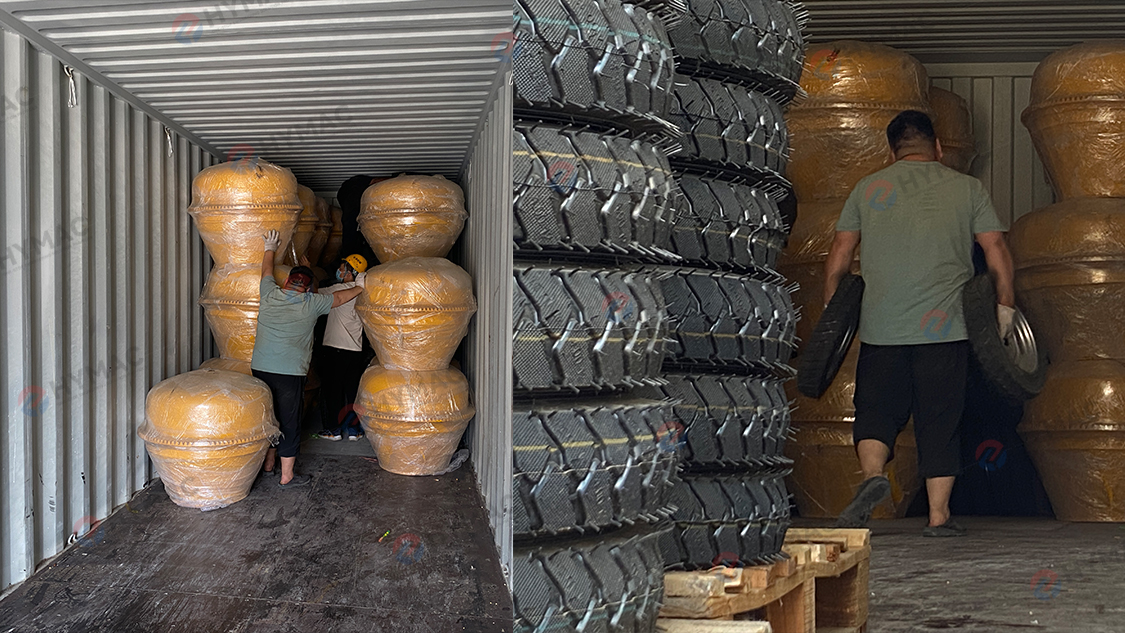

Hengyou Group has supplied mini concrete mixers to numerous projects worldwide, garnering a wealth of positive customer feedback. Below, you will find additional success stories that vividly demonstrate the positive impact of these mini concrete mixers across a wide range of environments and application scenarios.
Our Product Advantages
Chassis
Constructed from a thickened steel square-tube structure, featuring clean, fluid lines that minimize material accumulation.

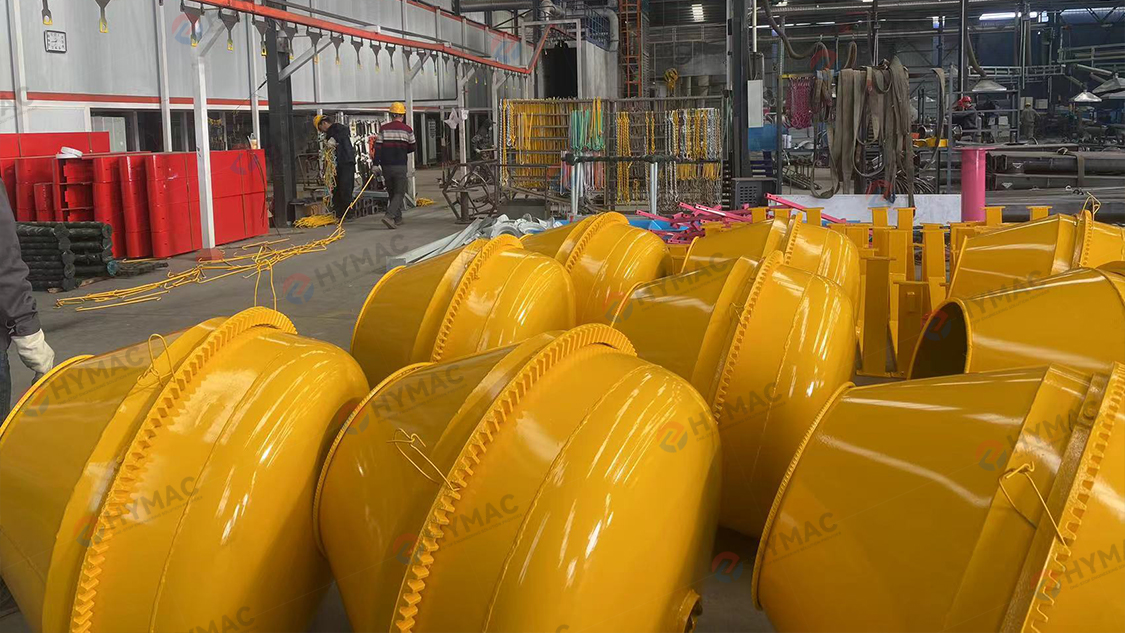

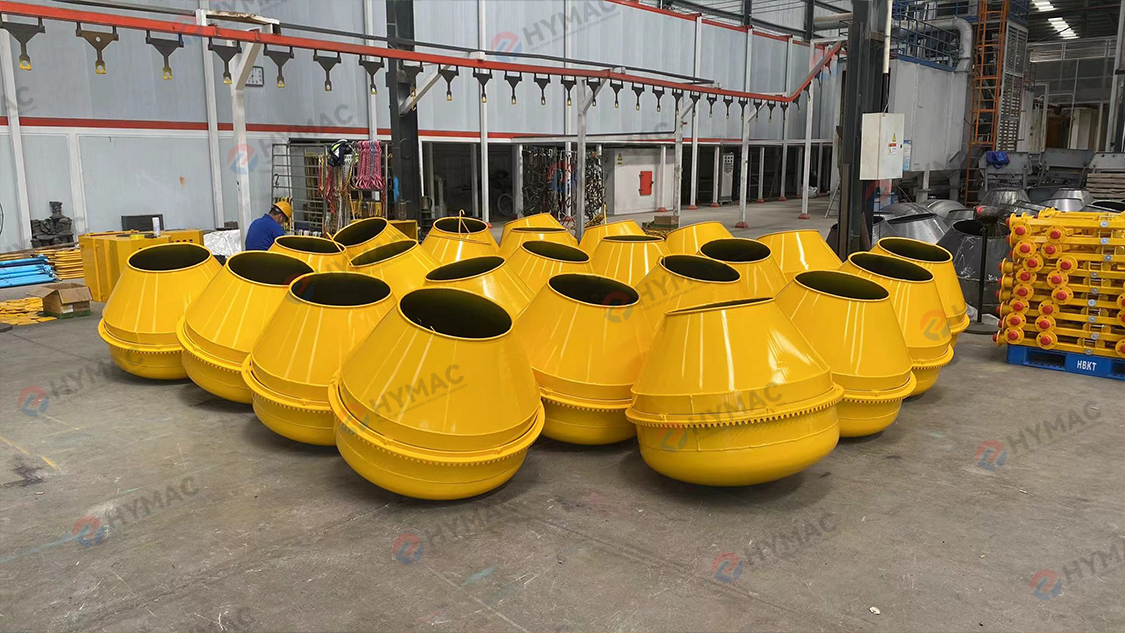

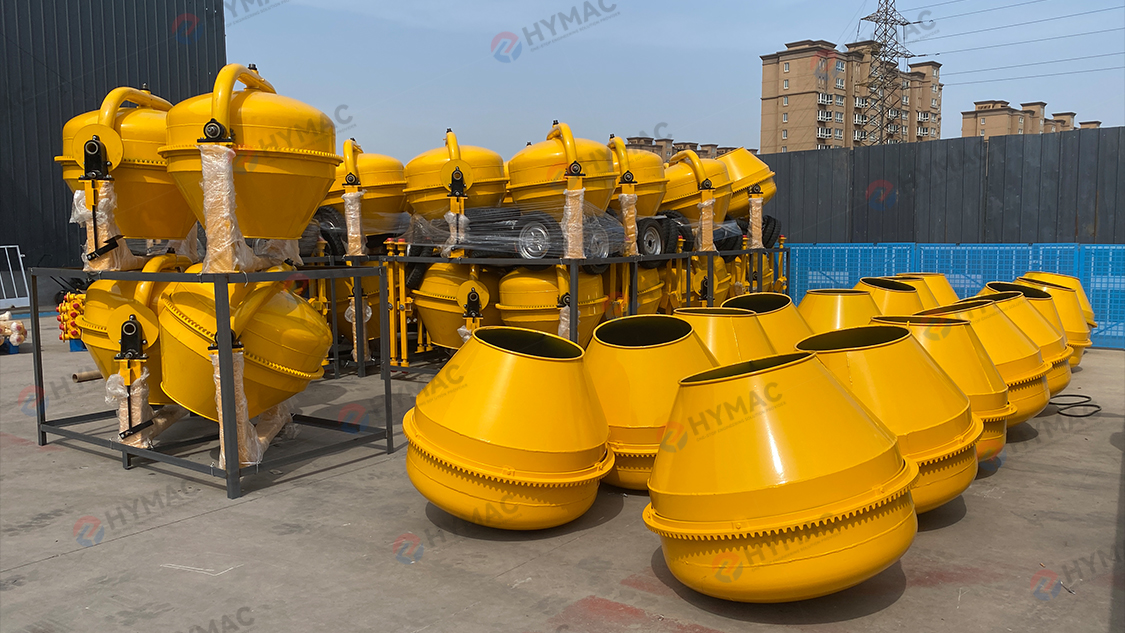

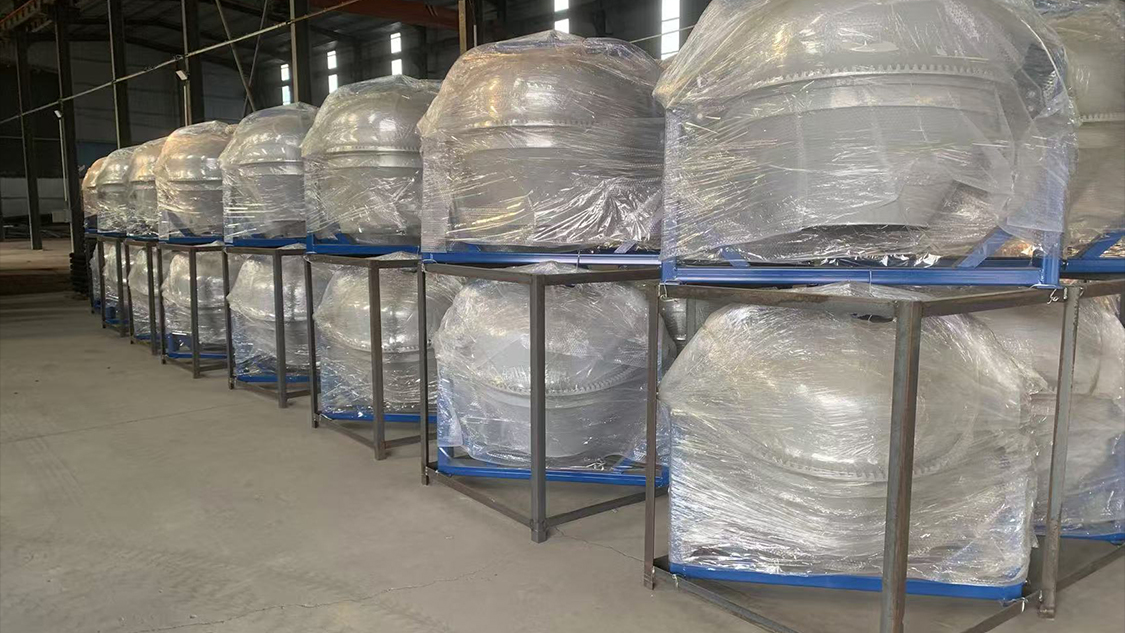

Drum
A two-piece, spin-formed steel drum ensures a long service life and ease of replacement. The highly efficient drum design, combined with dual rapid-mixing blades, ensures thorough mixing while preventing waste caused by clogging and material buildup.
Engine
Options include either a domestically produced Chinese engine or an imported Honda engine; for both choices, gasoline, diesel, and electric versions are available.
Transmission System
Simplifies the mechanical transmission mechanism, minimizes power loss, and utilizes a "V"-belt drive.
Convenience
Daily inspection points, maintenance items, and all replaceable parts are conveniently accessible for comprehensive servicing.
Axles/Wheels
Fixed rear axle and rotatable front axle, equipped with four rubber off-road mining-type cushioned tires and a tow bar.
The Enduring Pioneer in the Mini Concrete Mixer Industry!
We offer a comprehensive range of models and varieties, and also accept custom orders directly at our factory.
